Driveway Drain



Grate and Drain Base Manufactured entirely from 316 grade stainless steel.

Available as a modular system in 1000mm, 1500mm, 2000mm or 3000mm Lengths, in the following size formats:


  • 130mm (W) x 110mm (D)
  • 195mm (W) x 100mm (D)
  • 195mm (W) x 150mm (D)
  • 195mm (W) x 200mm (D)
  • 260mm (W) x 100mm (D)
  • 260mm (W) x 150mm (D)
  • 260mm (W) x 200mm (D)

Outlets can be added horizontally or vertically in any required position, available in 50mm, 75mm 90mm or 100mm diameters.

Custom lengths and depths can also me manufactured to suit your specific requirements.

Light Vehicle Grate

The Light Vehicle Grate is manufactured from 6mm square stainless-steel bars with 5mm spaces and 6mm stainless steel crossbars for support and can be fitted directly into a preformed channel. However, Creative Drain Solutions recommends the Light Vehicle Grate is installed with a stainless steel 20mm x 20mm Ladder Frame for extra support.

The standard features of the Light Vehicle Grate are:

  • Manufactured from 316 (marine) grade stainless steel
  • The drain is electro-polished to prevent tea-staining;
  • Crossbar size: 6mm x 6mm
  • Crossbar spacing: 100mm
  • Brushed finish.

The custom features of the Light Vehicle Grate are:

  • Grate length manufactured to suit your specific requirements;
  • Grate width manufactured to suit your specific requirements.

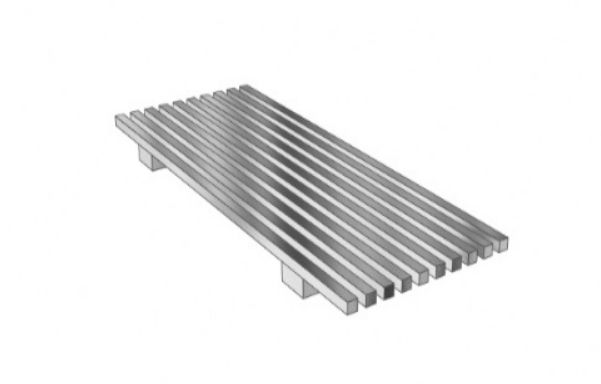

Medium Duty Grate

The Medium Duty Grate is manufactured from 6mm square stainless-steel bars with 5mm spaces and 20mm x 10mm stainless steel crossbars for support and can be fitted directly into a preformed channel.  However, Creative Drain Solutions recommends the Medium Duty Grate is installed with a stainless steel 30mm x 30mm Ladder Frame for extra support.

The standard features of the Medium Duty Grate are:

  • Manufactured from 316 (marine) grade stainless steel
  • Drain is electro-polished to prevent tea-staining;
  • Crossbar size: 20mm x 10mm
  • Crossbar spacing: 200mm
  • Brushed finish.

The custom features of the Medium Duty Grate are:

  • Grate length manufactured to suit your specific requirements;
  • Grate width manufactured to suit your specific requirements;



Heavy Duty Grate

The Heavy Duty Grate is manufactured from 6mm square stainless-steel bars with 5mm spaces and 20mm x 10mm stainless steel crossbars for support and can be fitted directly into a preformed channel. However, Creative Drain Solutions recommends the Heavy Duty Grate is installed with a stainless steel 30mm x 30mm Ladder Frame for extra support.

The standard features of the Heavy Duty Grate are:

  • Manufactured from 316 (marine) grade stainless steel
  • Drain is electro-polished to prevent tea-staining;
  • Crossbar size: 20mm x 10mm
  • Crossbar spacing: 100mm
  • Brushed finish.

The custom features of the Heavy-Duty Grate are:

  • Grate length manufactured to suit your specific requirements
  • Grate width manufactured to suit your specific requirements
