Threshold Solutions

The Zero Threshold Slot Drain provides a simply outstanding aesthetic, with discreet drainage in doorways. The drain enables large, impressive open spaces with flat transitions between living areas and ensures quality waterproofing.

Available as a slot drain, with a removable 7 or 9 bar grate or with a tile insert tray.  The Zero Threshold Drain Slot consists of an exterior lineal drain with a custom designed, integrated sub-sill which cradles the sliding or bi-fold door or window track to be installed. This system has been designed to work in conjunction with the simplest top hung bi-fold doors to complex and intricate four track sliding doors with fly screens.

Manufactured from 316 Stainless Steel to create a strong, durable and attractive appearance that is made to last.

 Wheelchair and walker-friendly, our Zero Threshold drains have been used extensively to provide smooth access in homes that provide an adaptable living for a lifetime of sustainable design.

Suitable for many applications and configurations, threshold drains can provide transition solutions for:

  • Living to alfresco
  • Bedroom to balconies
  • Wheelchair access to the main door
  • Public access to building foyers
  • Aged care facilities







Products

Custom made to suit virtually any brand and style of door and window, we offer many styles:

  • Zero Threshold Grated Linear Drain
  • Zero Threshold Tile Insert Tray
  • Zero Threshold Slot Drain
  • Zero Threshold Bifold
  • Stainless Steel Flashings

Styles

We have bathroom solutions available in the following grate styles:

  • Bar Grate
  • Eco Punched Slot
  • Tile Insert Tray
  • Slot Drain

See our Styles HERE

Enquire Now

See:

Zero Threshold Grated Linear Drain

Zero Threshold Tile Insert Tray

Zero Threshold Slot Drain

Zero Threshold Bifold

Stainless Steel Flashings

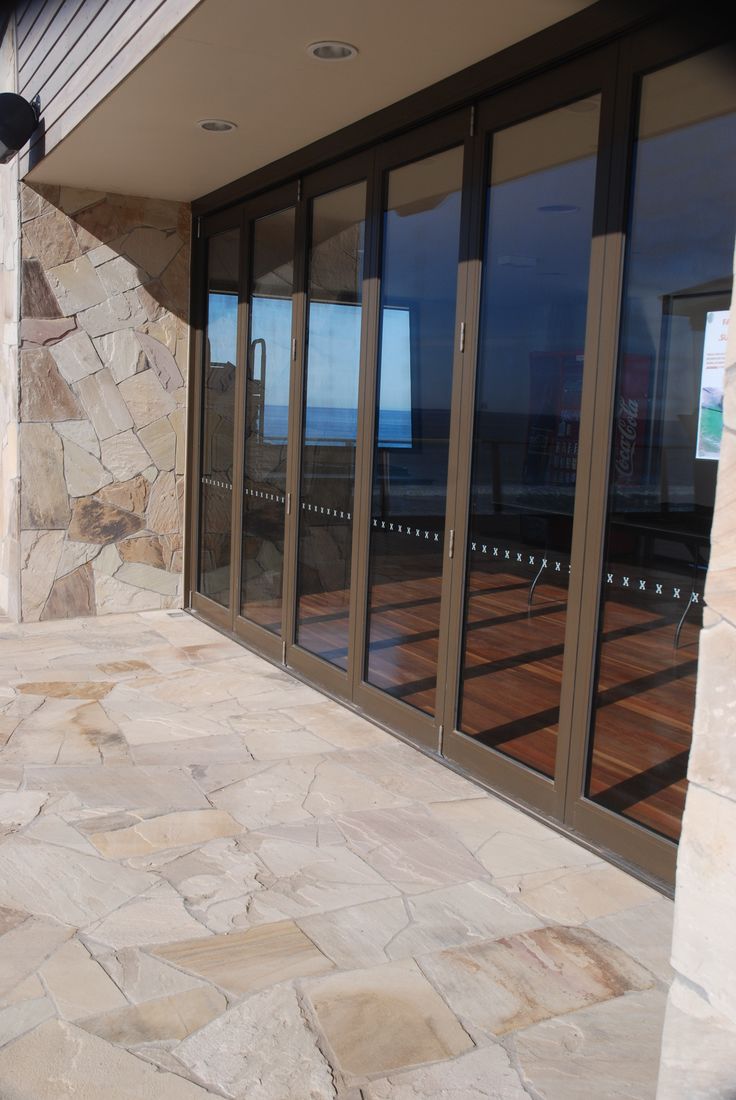

Zero Threshold Tile Insert Tray

Features

Standard Features

  • Easy to install and waterproof
  • Manufactured to suit the specific tile thickness on the balcony deck and walls
  • Drain length is manufactured to your specification
  • Built-in Fall
  • Can be used with Polished Concrete
  • Standard 50mm male stainless-steel dropper located 75mm to centre from end of the drain
  • Manufactured from 316 (marine) grade stainless steel
  • Electro-polished to prevent tea-staining

Custom Features

  • Outlet location can be located to suit your requirements
  • Flashings can be extended or custom designed
  • Multiple outlets in desired locations



Zero Threshold Drains



Creative Drain Solutions Zero Threshold Drains are designed to provide an entirely flat, seamless connection between indoor and outdoor living and entertaining areas. The Zero Threshold Drain consists of an exterior linear drain with a custom-designed, integrated sub-sill which cradles the sliding or bi-fold door or window track to be installed. The external linear drain acts as a water barrier between the outdoor and indoor living areas. The sub-sill cradle under the door track will then collect and direct the water or condensation on the interior or exterior of the doors or windows into the external drain.

The Zero Threshold Drain eliminates the “trip and wheelchair hazard” which has historically existed across doorways fitted with sliding or bi-fold doors.

Suitable for:

  • Sliding Doors - top hung or roller
  • Bifold Doors - top hung or roller
  • Hinged Doors alone or part of a bifold set

Available in the following grate styles:

  • 7 Bar Grate
  • Tile Insert Tray
  • Slot Drain
  • Punched Slot

Download out Zero Threshold Frequently Asked Questions sheet HERE.



Creative Drain Solutions require a sample of the door track to be used to ensure the sub-sill cradle is designed and manufactured correctly. The Zero Threshold Drain is manufactured to length and the drainage tray is designed to accommodate the water volumes projected. Please Note: The Zero Threshold Lineal Drain should only be used as a secondary drain, not the primary drain for outdoor entertaining and alfresco areas.

The Zero Threshold Drain can also be used for Single Entry; hinged doors which historically have a timber sill and water stop lip installed above the internal floor level. The Zero Threshold Lineal Drain is installed level with the internal floor, under the door and door jambs and extends into the entry area outside the door, acting as a water barrier between outdoor and indoor areas.

The Zero Threshold Lineal Drain is ideally suited for use with the following types of doors:

  • Sliding Doors – either “top hung” doors using bottom guide tracks or sliding doors using bottom running tracks, which utilise sub-sills with weep holes to allow water to drain away from the door track sub-sills
  • Bi-fold or Multi-fold Doors – generally “top hung” doors using bottom guide tracks with sub-sills with weep holes to allow water to drain away from the door track sub-sills. In certain applications, The Zero Threshold Lineal Drain can be manufactured to incorporate the bottom guide track into the “indoors” side of the lineal drain.
  • Hinged Entry Door – is your standard, hinged, swinging door, or doors where a double door entry applies.

Features:
  • Customisable Blankouts
  • Weep holes to eliminate water hydration from under the tile
  • Fixing points
  • Incorporated waterproof flanges
  • Fully customisable to the required length and your tile thickness

Optional Extras:

  • Additional droppers
  • Outlets to the front of the drain
  • Outlet locations greater than 175mm from an end
  • Multi-direction fall
  • Powdercoating
  • Mitred corners
  • Curved drains to any radius or width required

Zero Threshold Bar Grate



The Zero Threshold Bar Grate is an elegant solution for thresholds with removable grates in numerous widths allowing for easy cleaning.  Custom made to fit your extrusions and decor, electro-polished grates will stand the test of time.

Suits:

  • Sliding Doors - top hung or roller
  • Bifold Doors - top hung or roller
  • Hinged Doors alone or part of a bifold set

See the Zero Threshold Bar Grate page for more information.


Zero Threshold Tile Insert Tray



Designed with a removable Tile Insert Tray to hold your tiles or pavers,  water ingress into the drain is through discreet slots on either side of the Tile Insert Tray.

Suits:

  • Sliding Doors - top hung or roller
  • Bifold Doors - top hung or roller
  • Hinged Doors alone or part of a bifold set

See the Zero Threshold Tile Insert Tray page for more information.


Zero Threshold Slot Drain



A discreet solution for thresholds, the Slot Drain is a thin slot along the extrusion to capture water and drain it to the outlet beneath the removable tile inspection opening.

Suits:

  • Sliding Doors - top hung or roller
  • Bifold Doors - top hung or roller
  • Hinged Doors alone or part of a bifold set

See the Zero Threshold Slot Drain page for more information.


Zero Threshold Bifold Drain



A discreet solution for thresholds, the Bifold Drain is a thin slot along the extrusion to capture water and drain it to the outlet beneath the removable tile inspection opening.

Suits:

  • Top Hung Bifolds
  • Bottom Roller Bifolds
  • Combination Bifold / Hinged doors

See the Zero Threshold Bifold Drain page for more information.


Enquire Now



Included as standard:

  • Drain length manufactured to suit your specific requirements
  • Drain width manufactured to suit your specific requirements e.g. 5 bar grate, 7 bar grates
  • Available as a “slotted drain”
  • Location and size of the waste outlet to suit your specific requirements
  • Manufactured to suit the door tracks and sub-sills specified
  • Manufactured to suit the surface of the outdoor/alfresco area e.g. concrete, tiles, pavers, stone.
  • Built-in fall to left or right
  • Exclusively made from 316 Brushed Marine Grade Stainless Steel
  • Passivated and Electro-polished to prevent tea staining
  • Welded end caps
  • Manufactured to suit your tile thickness
  • Single dropper of your choice within 175mm from an end
  • Weep slots in horizontal flashing to discharge any water under the tiles
  • All Tile Insert linear drains are delivered with a suction cup to aid the removal of the tile insert tray. Please Note: The suction cup should only be used to lift the tile insert tray at one end, allowing the tray to be grasped by hand and carefully lifted out. The suction cup is unlikely to work on porous stone or tile surfaces such as bluestone or marble
